PROJECT: JOINT CHIEFS OF STAFF FUTURE THEATER LEVEL MODEL IV&V

Dr. Dean S. Hartley III


Project Metadata Keywords
Label Name Other Year DurationYrs
Client J8 The Joint Staff
Dates 1993 1.5
Employer DOE Oak Ridge Facilities
Partner N/A
Pubs An Independent Verification and Validation of the Future Theater Level Model Conceptual Model, K/DSRD-1637 lead author 1994
Pubs "IV&V of the Future Theater Level Model Conceptual Model," Abstracts of 1993 MORS Symposium lead author 1994
Pubs "A Methodology for IV&V of a Combat Model Concept," Proceedings of the Conference on High Performance Computing lead author 1993
Team Kara L. Kruse, A. John Martellaro, Stephen L. Packard, Benjamin Thomas, Jr., Victoria K. Turley
Configuration management
Human factors
Independent Verification & Validation (IV&V)
Metadata
Modeling, Simulation & Gaming (MSG)
Software issues
Verification, Validation & Accreditation (VV&A)
Warfare modeling

Challenge: The Joint Chiefs of Staff was investigating building a new model of theater level warfare. Under the new guidelines for modeling and simulation, independent verification and validation (IV&V) is required during the design process. At the time, the model was in the conceptual design phase, which presented a two- fold problem: finding an independent organization that was qualified to perform the IV&V and the actual performance, because such IV&V had never before been performed at the conceptual design phase.

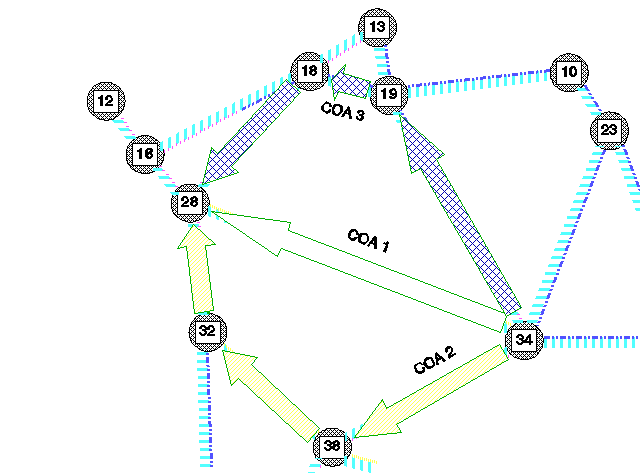

Figure 1. Evaluating Courses of Action in the FTLM


Accomplishment: DSRD solved both problems for the sponsor. First, DSRD defined what should be meant by IV&V of a model in the conceptual design phase. This included comparison with other models, algorithmically, functionally, and in terms of potential lessons to be learned. Second, DSRD performed the IV&V, delivering criticisms, suggestions for improvement, and an assessment of the degree to which the model satisfied the Mission Needs Statement and its validity. DSRD recommended continued development of the model. The model is now undergoing intensive research at the Naval Postgraduate School.

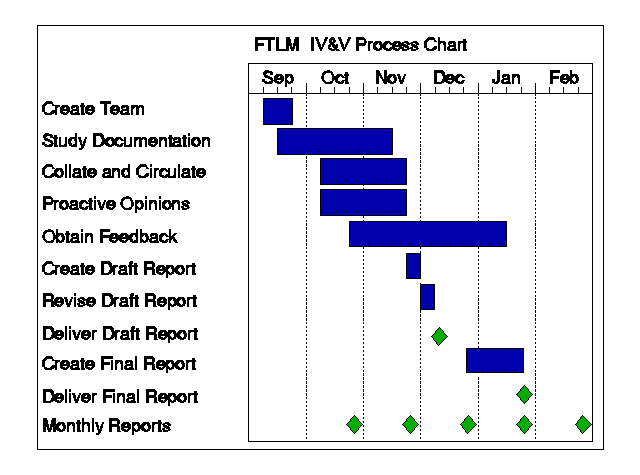

Figure 2: Project Schedule


Technologies Employed: This project represents one of the limited number of IV&V activities ever performed on a large scale combat model. It also represents the defining project for IV&V of a combat model in the conceptual design phase and is a standard for future projects in this arena.


Background: The sponsor was J-8, the part of The Joint Staff tasked with analytic tasks at the joint level for the U.S. There is growing agreement in the modeling and simulation community that verification and validation (V&V) is valuable, necessary and worth funding. The report describing this project provides a benchmark for future V&V activities.
